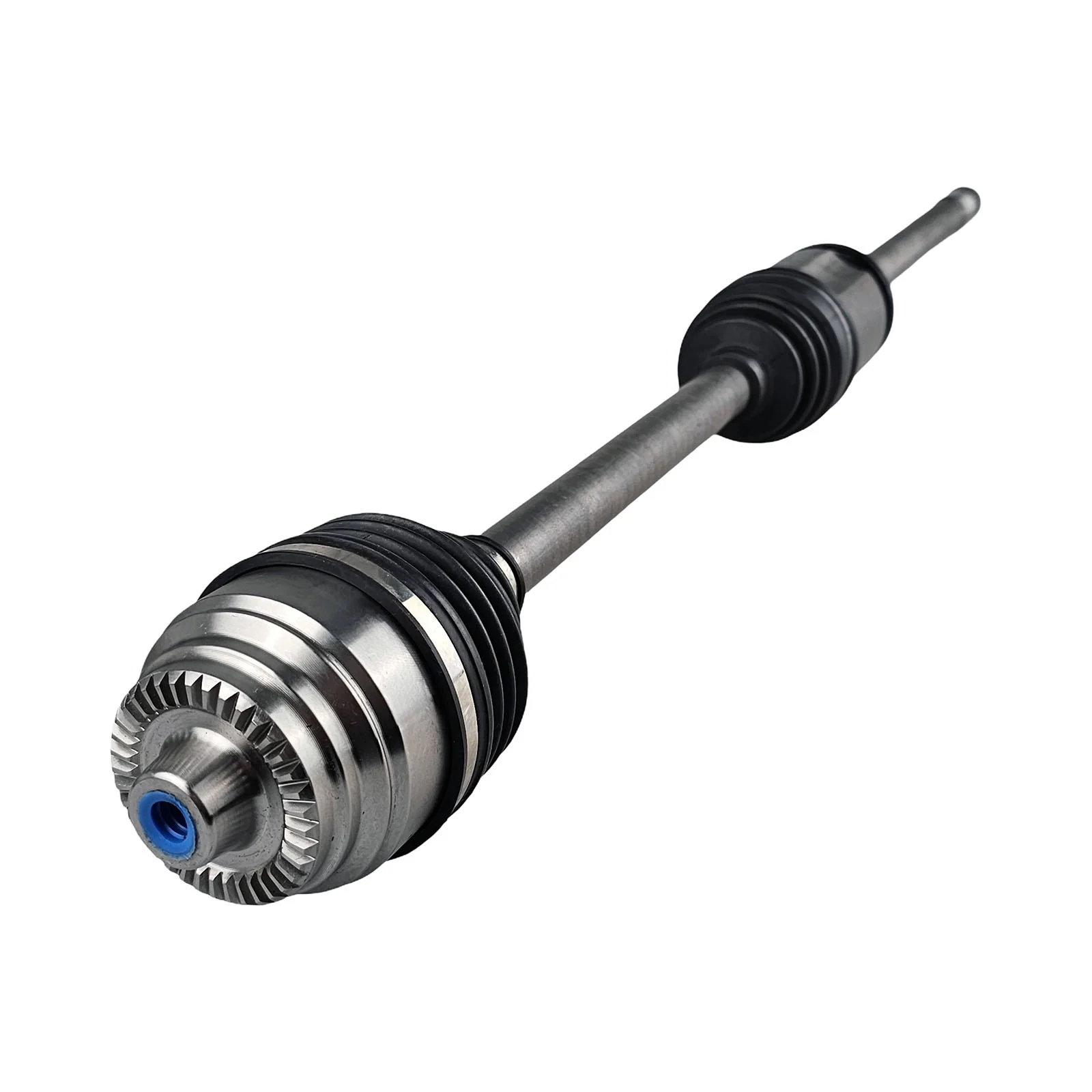

CV Axle Drive Shaft - Front Right Hand Side Automatic AWD

Front Right, Spline Count 37 Teeth Wheel Side, AWD Automatic Only



Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment For:

• BMW X5 G05 2.0L B47D20B / 3.0L B57D30A(inc. Hybrid) B57D30B(inc. Hybrid) B57D30C B58B30C(inc. Hybrid) / 4.4L N63B44D(inc. Hybrid) AWD Automatic (12/2018 - Onwards)
  Includes Sub-Models xDrive 25d, xDrive 30d, M-Sport, xLine, M50d, xDrive 30d MHEV, xDrive 40d MHEV, xDrive 40i, xDrive 45e, xDrive 40i M Sport MHEV, xDrive 50e M Sport PHEV, M50i, M60i
• BMW X5 F95 4.4L S63B44B(inc. Hybrid) AWD Automatic (12/2019 - Onwards)
  Includes Sub-Models M Competition, M Competition MHEV
• BMW X6 G06 3.0L B57D30A(inc. Hybrid) B57D30C B58B30C(inc. Hybrid) / 4.4L N63B44D(inc. Hybrid) AWD Automatic (08/2019 - Onwards)
  Includes Sub-Models xDrive 30d M Sport, xDrive 30d M Sport MHEV, M50d, xDrive 40i M Sport, xDrive 40i M Sport MHEV, M50i, M60i MHEV
• BMW X6 F96 4.4L S63B44B(inc. Hybrid) AWD Automatic (12/2019 - Onwards)
  Includes Sub-Models M Competition, M Competition MHEV
• BMW X7 G07 3.0L B57D30A B57D30C B57D30(inc. Hybrid) B58B30C(inc. Hybrid) / 4.4L N63B44D(inc. Hybrid) AWD Automatic (12/2018 - Onwards)
  Includes Sub-Models xDrive 30d, M50d, xDrive 40d MHEV, Design Pure EXC MHEV, M Sport MHEV, xDrive 40i, M50i, M60i xDrive MHEV

Sizing and Specifications

• Length (Compressed): 912mm
• Spline Count, Locking Teeth at Back of Hub: 37T
• Spline Count - Inner/Diff Side: 27T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball

• Hub Nut Style: M16 x 1.5

• Ext Shaft Length From Inside of Oil Seal Shoulder: 359.5mm



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
