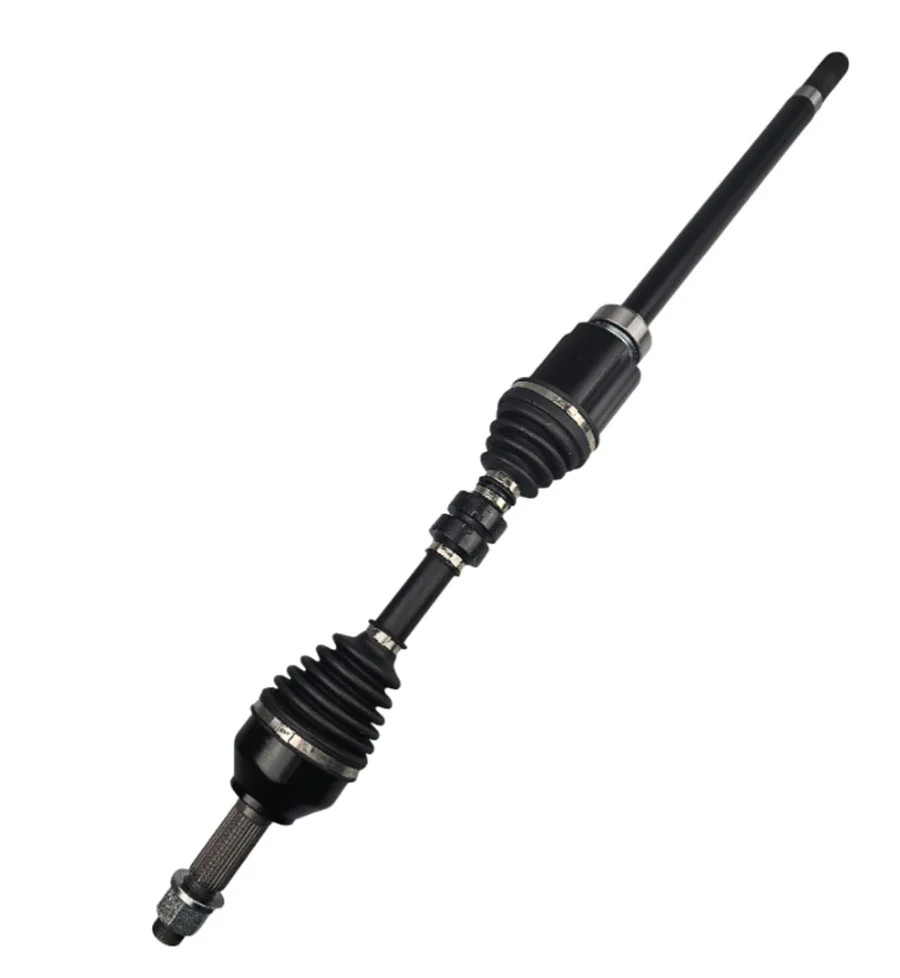

CV Axle Drive Shaft - Front Right Hand Side Manual AWD 29 Spline

Please Contact Us as the Dualis has many versions of CV shafts, please see chassis fitment notes

Please double check your Nissan vehicle model as this will only fit the AWD Manual 29-spline version

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan Dualis J10 FBNJ10 JBNJ10 2.0L MR20DE AWD MT (12/2007 - 01/2016) For Manual 29 Splines Only
  Sub-Models Includes ST, +2 ST, Ti, Ti-L, +2 Ti, +2 Ti-L

• Nissan X-Trail T31 NT31 2.0L MR20DE 4WD MT (08/2007 - 03/2015)
  Sub-Models Includes 20S 4WD, 20ST 4WD . 20X 4WD. 20XT 4WD, 20XTT 4WD AXIS, 4WD, DRIVING GEAR 4WD

Sizing and Specifications

• Length (Compressed): 1003.5mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 29T
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Bearing Outer Diameter on Extension Shaft: 62mm
• Extension Shaft Length From Inside of Bearing Face: 426mm
• Bearing Width: 22.5mm
• Hub Nut Style: M24 x 1.5

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
