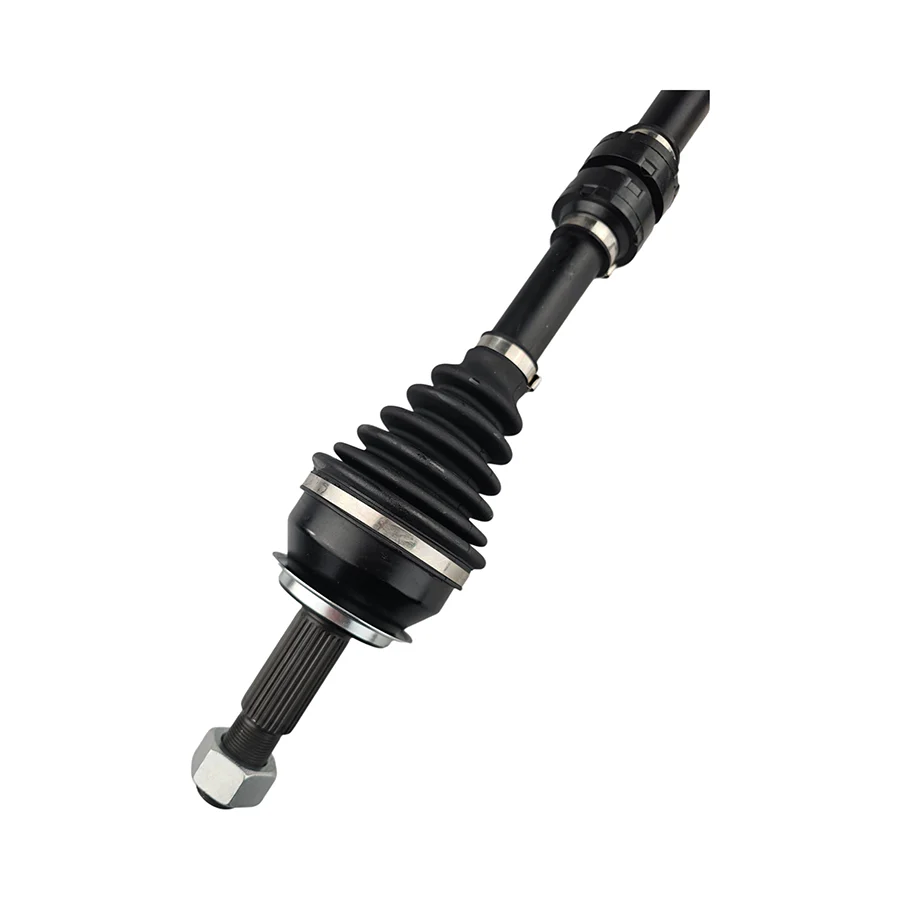

CV Axle Drive Shaft - Front Right Hand Side CVT FWD

Right side, CVT only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan Qashqai J11 FBAJ11 2.0L MR20DD FWD MT CVT (07/2014 - 06/2022) Right CVT
  Includes Sub Models Si, Ti, N-Sport, N-Tec, ST, ST+, ST-L

Sizing and Specifications

• Length (Compressed) : 964mm

• Spline Count Outer/Wheel Side : 29

• Spline Count Inner/Diff Side : 27

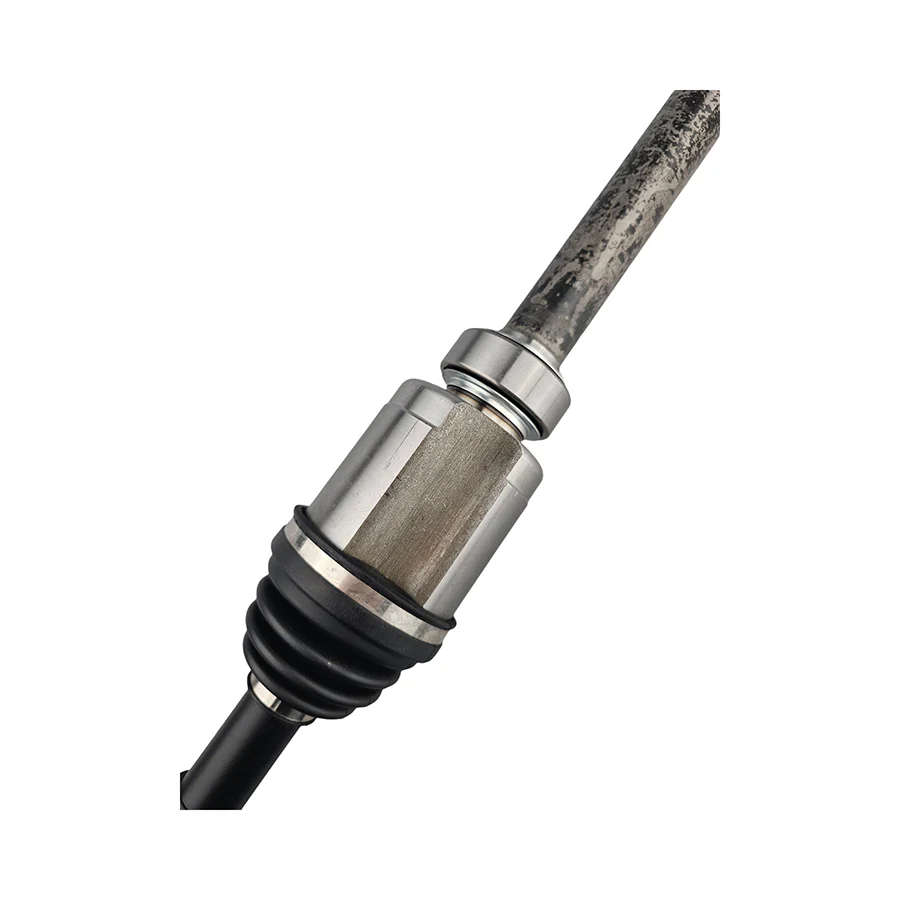

• Extension Shaft Length From Outside of Bearing: 356.5mm
• Extension Shaft Bearing OD: 79.5mm
• Extension Shaft Bearing Width: 20mm
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Hub Nut Style: M24 x 1.5

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
